One Touch Flex Locators are mechanical clamping locators designed for quick change applications.
Our unique one-touch design combines positioning and clamping in a single operation, reducing setup time during fixture changes.
The tapered surface contact ensures precise locating repeatability up to 0.003 mm.
The mechanical design with cam and ball-lock mechanism creates a heavy-duty clamping force of up to 4500 N, ensuring reliable fixturing in all applications from assembly and inspection to welding and machining.
Product Video
Feature
Quick Clamping & Locating
Simply turn the handle to achieve both precise positioning and secure clamping in a single operation.
Precise Locating Repeatability
The movable tapered mechanism allows precise dual contact for excellent repeatability.
Tapered surface contact provides efficient locating with up to 0.003 mm repeatability.

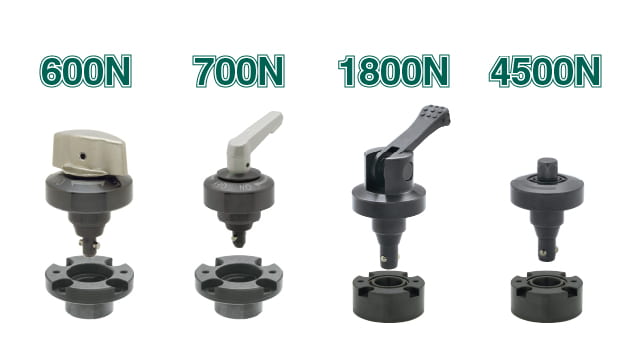

Heavy Duty Clamping
The robust cam and ball-lock mechanism delivers a powerful clamping force of up to 4500 N, maintaining stable workholding from light-duty assembly to demanding machining applications.

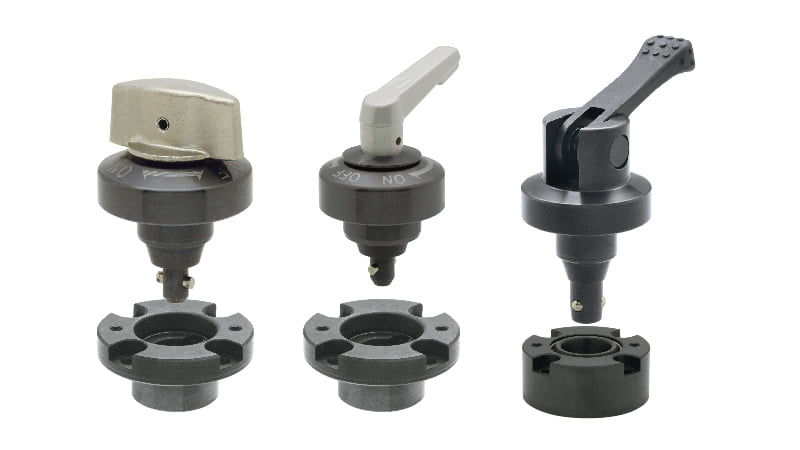

Lineup

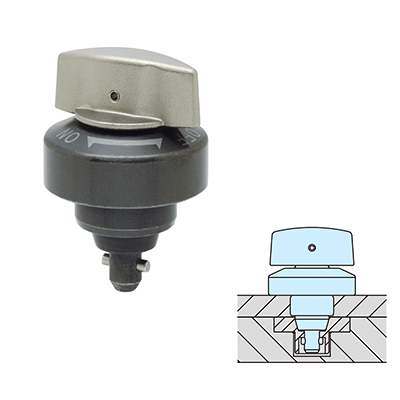

ONE-TOUCH FLEX LOCATOR (Knob)
- Tool-less clamping with a quarter turn
- Locating repeatability : 0.01 mm
- Clamping Force : 350 N / 600 N
RETRACTABLE ONE-TOUCH FLEX LOCATOR
- Tool-less clamping with a quarter turn
- Retractable shaft allows sliding movement
- Locating repeatability : 0.02 mm
- Clamping Force : 2500 N
PRECISION ONE-TOUCH FLEX LOCATOR
- Tool-less clamping with a quarter turn
- Precise positioning and powerful clamping
- Locating repeatability : 0.003 mm
- Clamping Force : 3000 N

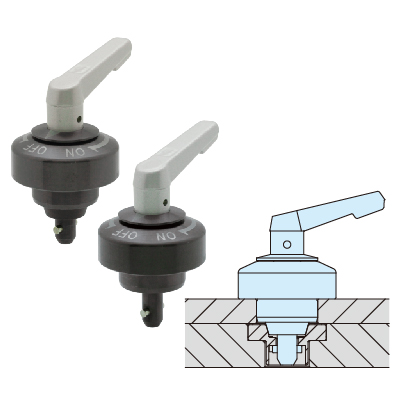

ONE-TOUCH FLEX LOCATOR (Handle)
- Tool-less clamping with a quarter turn
- Locating repeatability : 0.01 mm
- Clamping Force : 600 N / 700 N

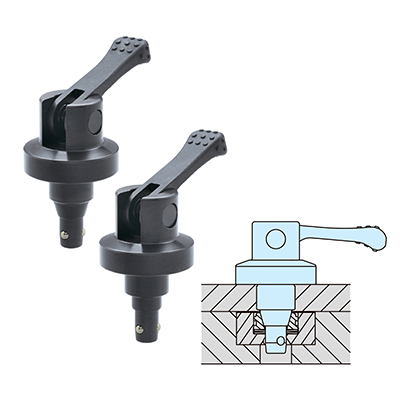

ONE-TOUCH FLEX LOCATORS (Cam Handle)
- Tool-less clamping
- High clamping force by ball lock
- Locating repeatability : 0.008 mm
- Clamping Force : 600 N / 1200 N / 1800 N

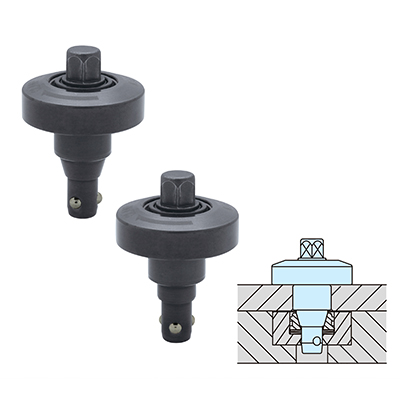

ONE-TOUCH FLEX LOCATORS (Hexagon Head)
- Heavy-duty clamping with thread and ball lock

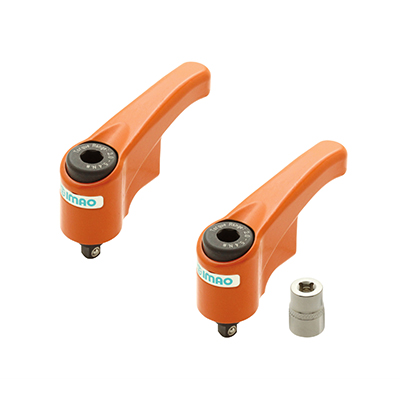

- Can be tightened with the torque control wrench
- Locating repeatability : 0.008 mm
- Clamping Force : 1700 N / 3000 N / 4500 N

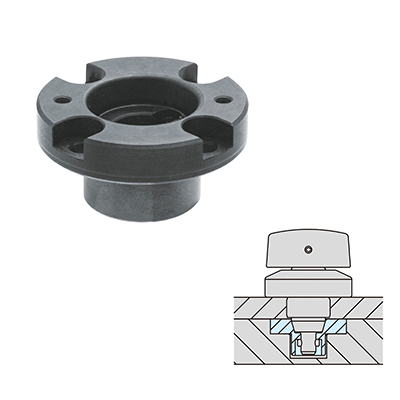

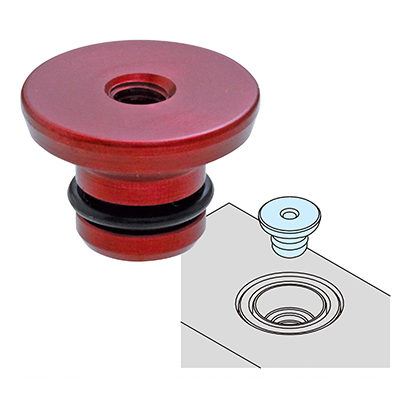

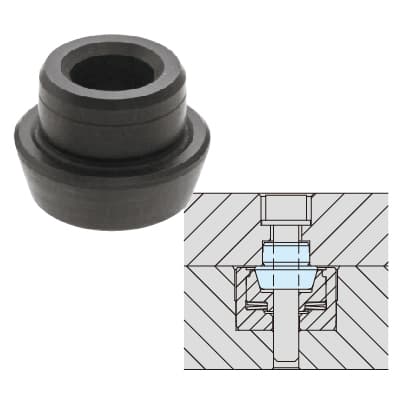

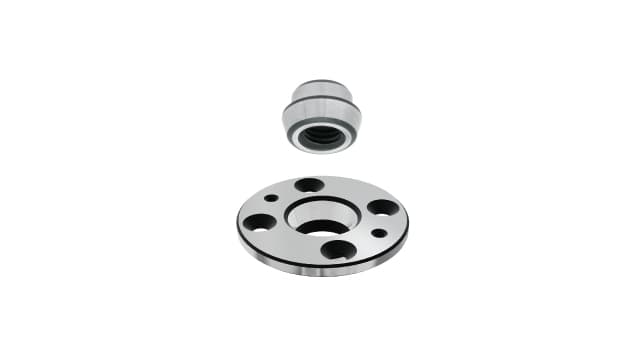

FLEX LOCATORS

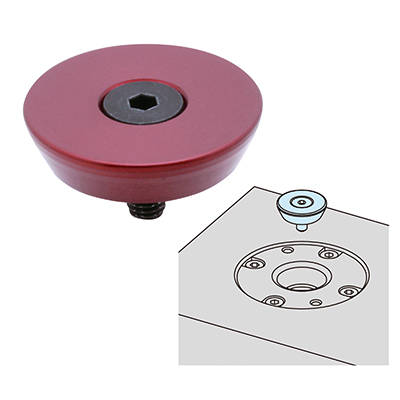

- Versatile component exclusively for positioning
- Locating repeatability : 0.01 mm

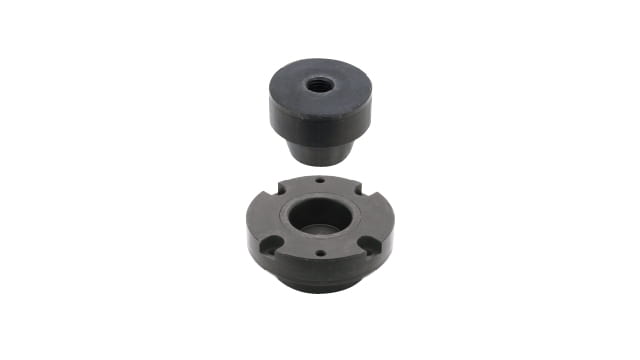

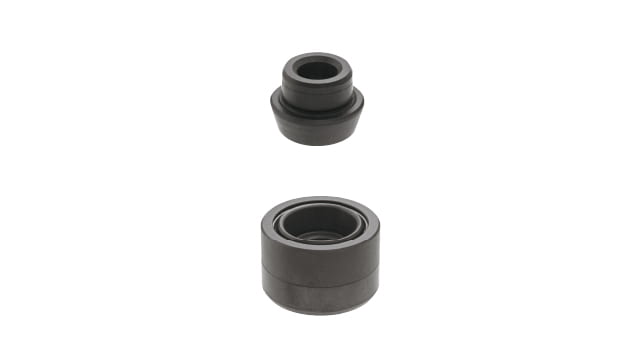

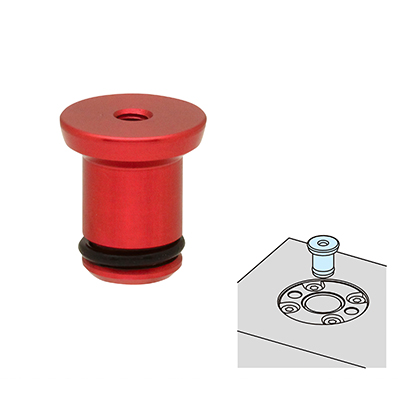

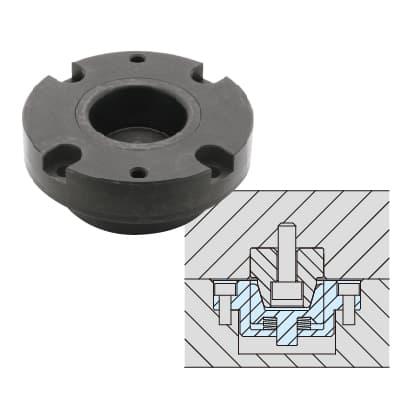

FLEX LOCATORS (Flanged)
- Improved, easy-to-install design
- Versatile component exclusively for positioning
- Locating repeatability : 0.01 mm

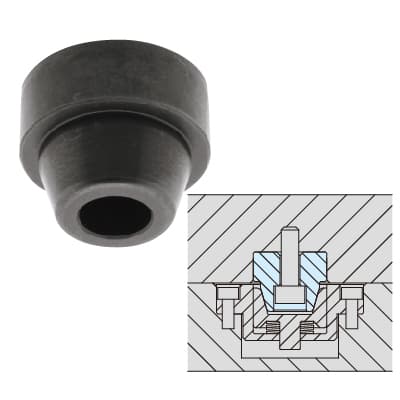

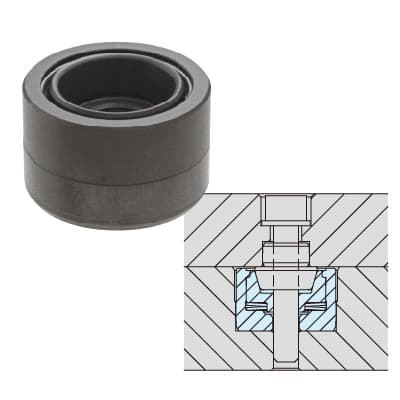

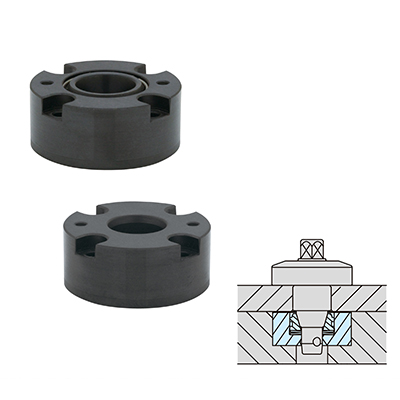

FLEX LOCATORS (Through)
- Versatile component exclusively for positioning
- Space saving by press-fit
- Locating repeatability : 0.01 mm
