Quick Fastening and Precise Locating for Machine Changeover!

One-Touch Indexing Clamps

One-Touch Indexing Clamps are quick fasteners with precise locating for position adjustment by sliding or rotation.
Tapered surface contact provides +/- 0.05 repeatability and ON/OFF marking and click eliminate human error.

Product Video

Feature

Quick Clamping

Just a quarter turn of the knob

Easy operation

Tapered Surface Locating

No clearance by tapered surface contact

Locating Repeatability: +/- 0.05

High Clamping Force & Allowable Axial Load

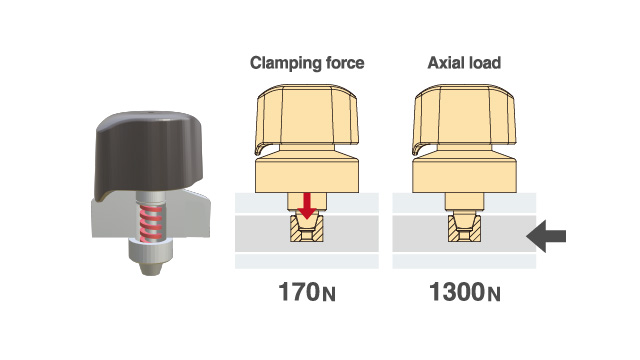

170N clamping force by the original cam locking mechanism

No displacement by axial load

Visible Safety

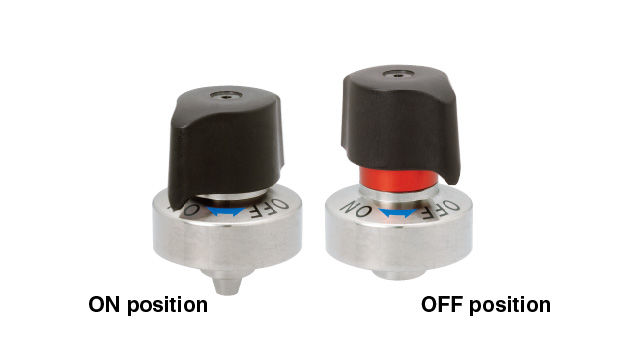

The knob clicks when clamping. (ON)

The red indicator shows when unclamping. (OFF)

Additional Feature

Flanged Style or Threaded Style

Flanged Style

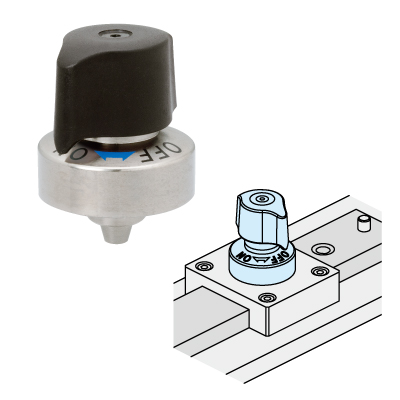

  • Mount from the back side of the body.
  • The knob position can be set at the desired place.

Threaded Style

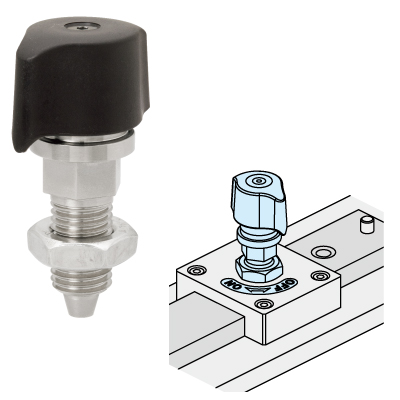

  • Only a tapped hole is required for mounting.

Without Spring Pressure or With Spring Pressure

Without Spring Pressure

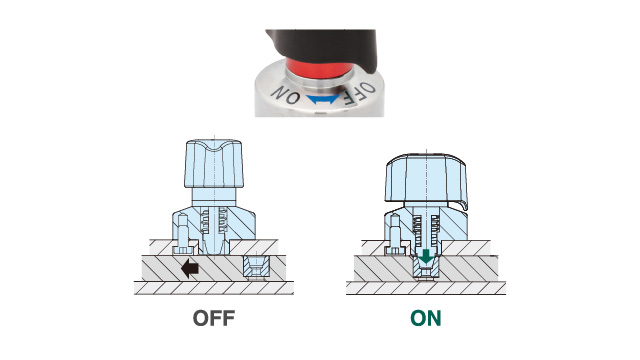

  • Turn the knob when the tapered bushing and tapered pin are aligned.

With Spring Pressure

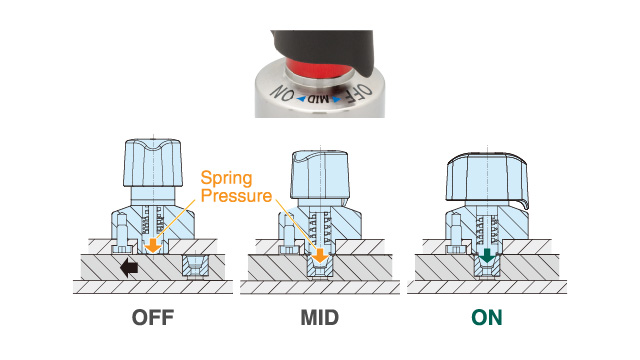

  • The tapered pin is pushed out by spring pressure when the tapered bushing and tapered pin are aligned. (OFF→MID)
  • Turn the knob for clamping. (MID→ON)

Application Example

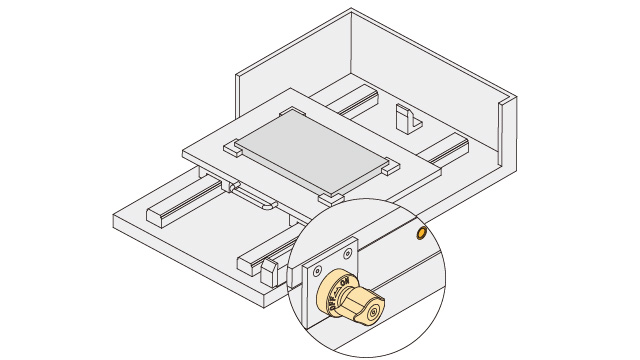

Locating and clamping for sliding plate

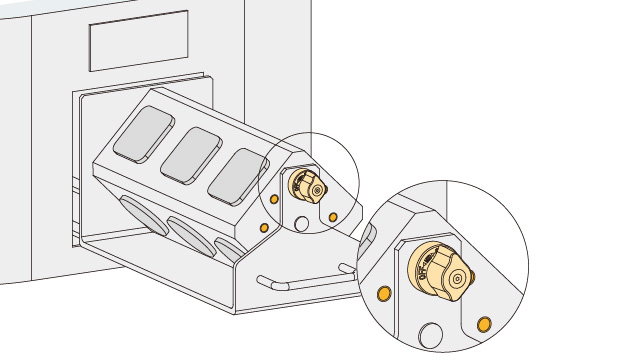

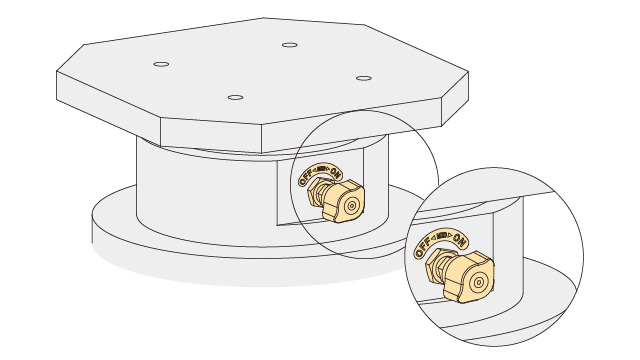

Locating and clamping for rotating unit

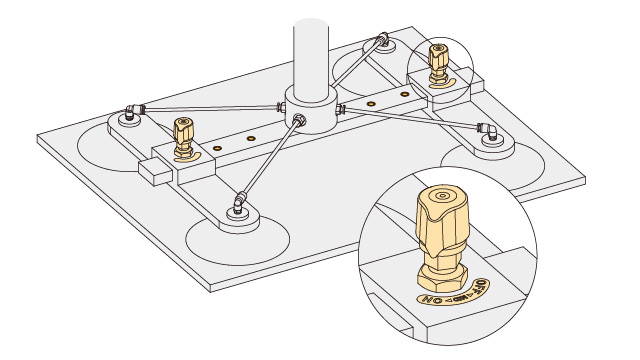

Locating and clamping for suction arms

Locating and clamping for rotating pallet

Lineup

QCIC-F

ONE-TOUCH INDEXING CLAMPS

QCIC-M

ONE-TOUCH INDEXING CLAMPS

QCIC-TB

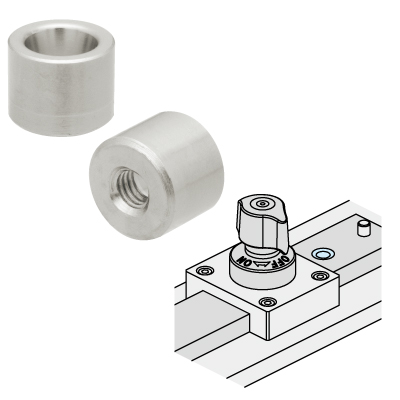

TAPERED BUSHINGS
