Pneumatic Clamping Locators Slash Machine Downtime with Fast Changeovers

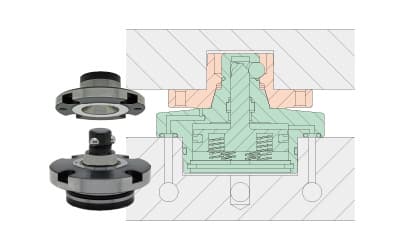

Zero Point Clamping System for Quick and Accurate Changeovers

IMAO's pneumatic clamping locators are ideal for frequent changeovers in automated machinery.
They enable quick clamping and positioning with excellent repeatability, drastically reducing setup time for plates, tooling, and fixtures.
Single-acting locators provide mechanical spring clamping and secure locking even without air supply.
Pneumatic clamping boosts the clamping force, making it suitable for heavy-duty applications.
These automated clamping locators offer a quick, simple, and secure changeover solution to enhance your productivity.

Product Video

Feature

Very Fast Clamping

Positioning and clamping are completed in a single step by simply supplying or releasing air.

Instant changeovers help significantly reduce machine downtime.

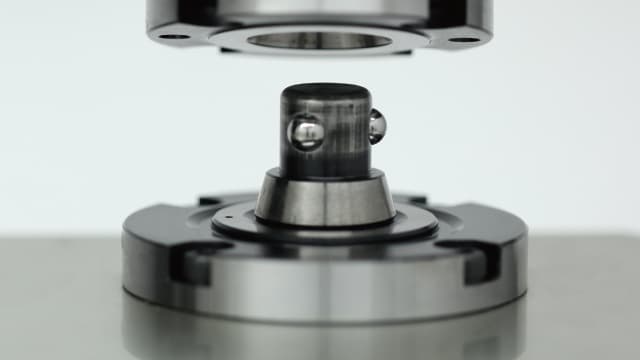

Excellent Repeat Accuracy

High positioning accuracy is achieved by dual contact of the tapered surface and the plate seating surface.

Light Duty models deliver 0.02 mm repeat accuracy, ideal for space-saving setups.

For ultra-precise positioning, Heavy Duty models achieve repeatability of up to 0.003 mm.

Secure Holding

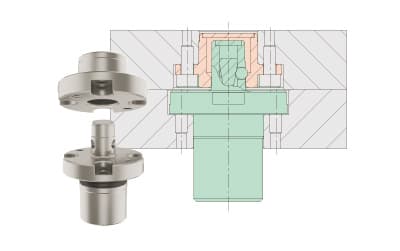

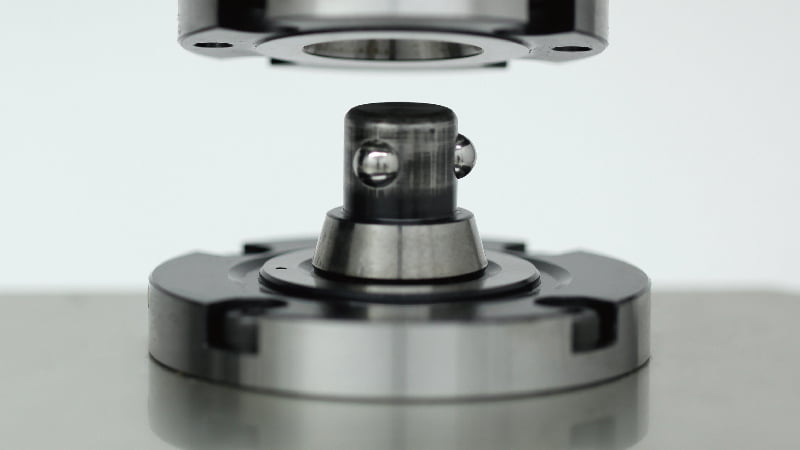

When air is supplied, balls protrude to press against the tapered surface of the receiver, securely clamping the plate.

Single-acting locators maintain clamping with a spring-loaded mechanical positive lock.
Double-acting locators offer even stronger holding force, enhanced by pneumatic pressure.

Lineup

Light Duty

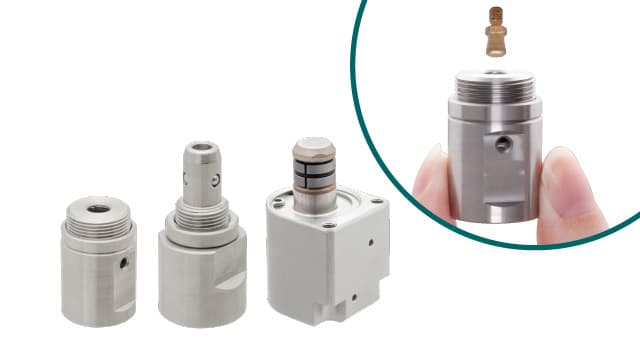

  • Locating Module & Clamping Pin Type
  • Single-acting module with spring clamping, pneumatic unclamping
  • Locating Repeatability : 0.06 mm
  • Clamping Force : 600 N / 1000 N
NEW

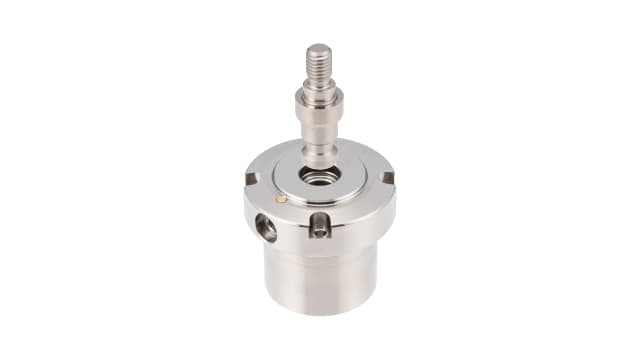

AMWFH-S

PNEUMATIC CLAMPING MODULES

NEW

AMWFH-M

CLAMPING PINS

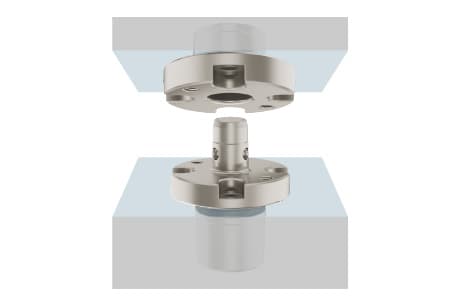

  • Locating Pin & Receiver Type
  • Single-acting locator with spring clamping, pneumatic unclamping
  • Locating Repeatability : 0.02 mm
  • Clamping Force : 250 N / 350 N

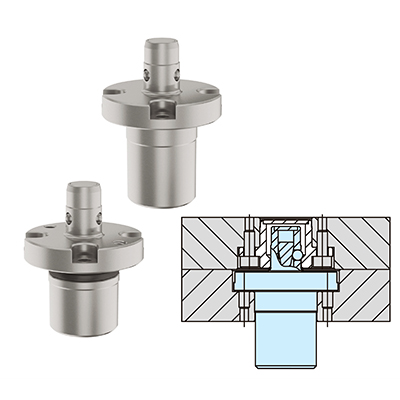

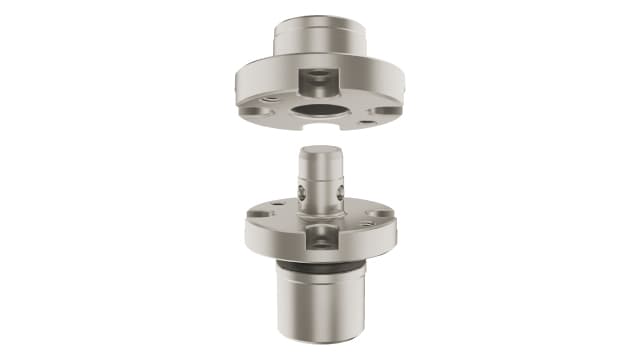

AMWF-L-S

PNEUMATIC CLAMPING LOCATORS

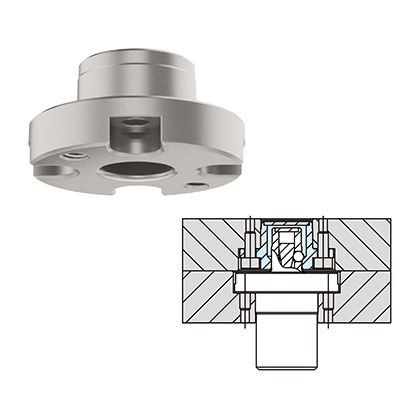

AMWF-BU

LOCATING RECEIVERS

Heavy Duty

  • Locating Module & Clamping Pin Type
  • Single-acting module with spring clamping, pneumatic unclamping
  • Turbo function boosts the clamping force
  • Locating Repeatability : 0.005 mm
  • Clamping Force with Spring : 4000 N / 8500 N
  • Clamping Force with Turbo : 12000 N / 26000 N
NEW

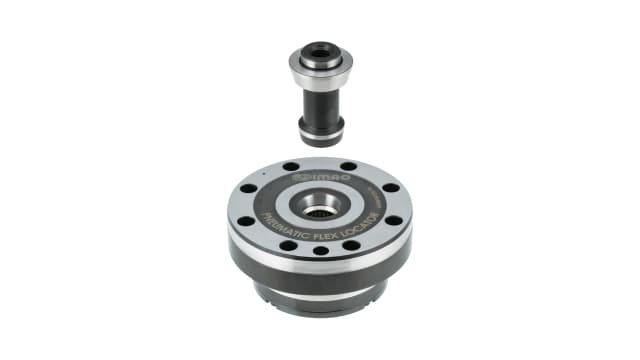

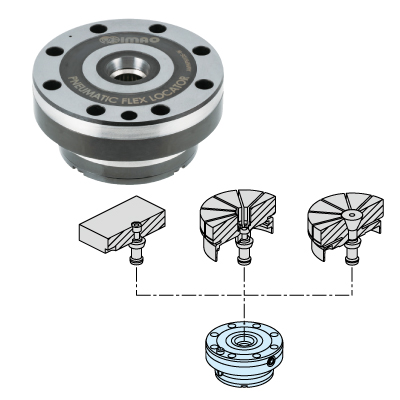

AMWFH-WP

PNEUMATIC CLAMPING MODULES

NEW

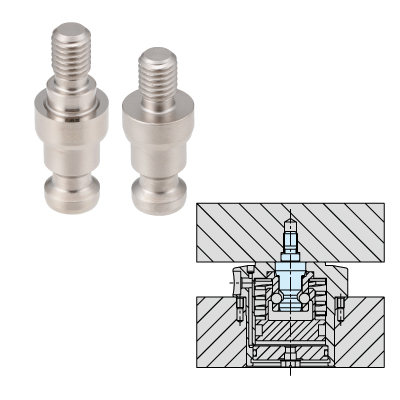

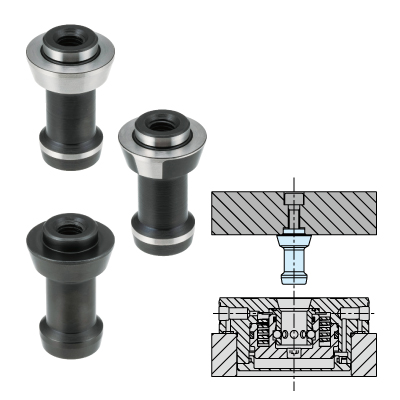

AMWFH-M

CLAMPING PINS

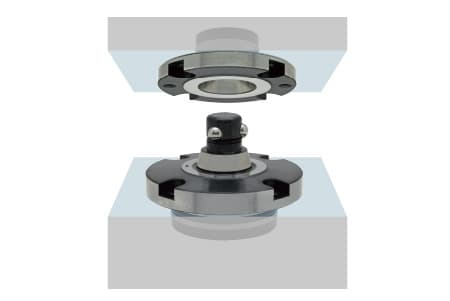

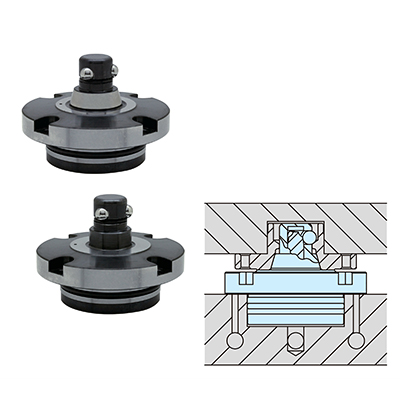

  • Locating Pin & Receiver Type
  • Double-acting locator with pneumatic clamping, unclamping
  • Mechanical locking by spring holds the receiver without air
  • Locating Repeatability : 0.003 mm
  • Clamping Force : 4000 N / 6300 N

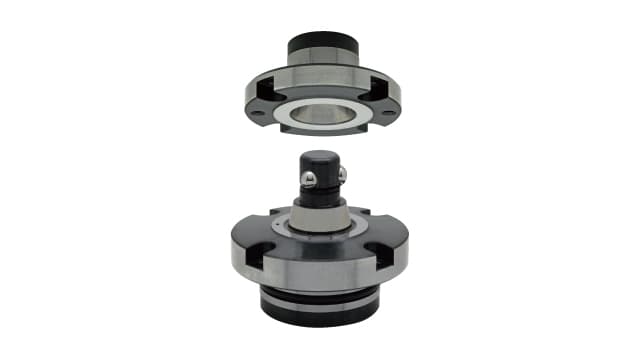

AMWF-W

PNEUMATIC CLAMPING LOCATORS

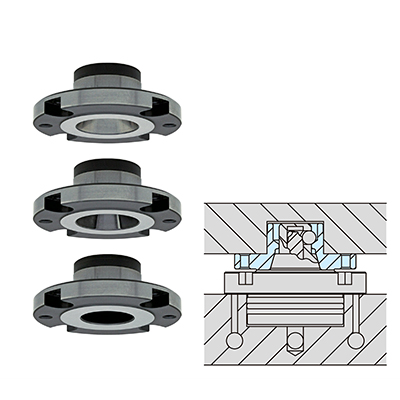

AMWF-BU

LOCATING RECEIVERS
