Pneumatic Fasteners Provide Instant Clamping!

Fastening automation for machine changeover

Pneumatic Clamping Fasteners are automated quick fasteners with air for quick change applications.
Instant pneumatic clamping slashes setup time in multiple-parts holding and frequent changeover of machinery or fixture.

Product Video

Feature

Quick Locking with Air

Multiple-parts holding in a single operation is available.

Reduces the setup time in frequent changeover of tooling, plate and fixture.

Ball Lock Clamping

The balls pushed out by the cylinder pull down the tapered surface of the clamping pin and clamp with wedge.

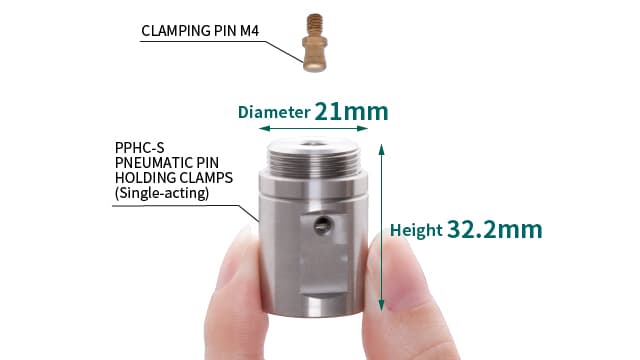

Compact Body

Compact body allows easy mounting in limited space.

Additional Feature

Stainless Steel Design

Suitable for applications that require rust and corrosion resistance.

Provides changeover solution in semiconductor manufacturing, food processing, pharmaceutical & cosmetic production and packaging machines.

Lineup and Application Example

PNEUMATIC PIN HOLDING CLAMP

The top of base plate stays flat!

Pull down the clamping pin.

PPHC-S

PNEUMATIC PIN HOLDING CLAMP (Single-acting)

PPHC-D

PNEUMATIC PIN HOLDING CLAMP (Double-acting)

QCPC-M

CLAMPING PIN

Single-acting

Double-acting

PNEUMATIC BALL-LOCKING CLAMPS

The bottom of fixture plate stays flat!

Spring / Pneumatic clamping are available.

PBLC

PNEUMATIC BALL-LOCKING CLAMPS

PBLC-M

BALL-LOCK RECEPTACLE

PNEUMATIC ID HOLDING CLAMP

Only hole on fixture plate is required!

Holds the internal diameter.

PIDHC

PNEUMATIC ID HOLDING CLAMP
