Reliable Hybrid Clamping - Engineered for Automated Systems
Enhanced clamping force through a mechanical-pneumatic hybrid design
IMAO's pneumatic clamps are engineered for automated clamping applications, featuring a unique hybrid mechanism that combines mechanical locking with pneumatic actuation.
This design delivers up to five times the clamping force of standard pneumatic cylinders of the same size.
IMAO offers a wide range of compact clamp styles—including swing, hold-down, pull-down, and OD/ID-holding models—providing versatile solutions for automated manufacturing systems.
Feature
Strong Clamping Force

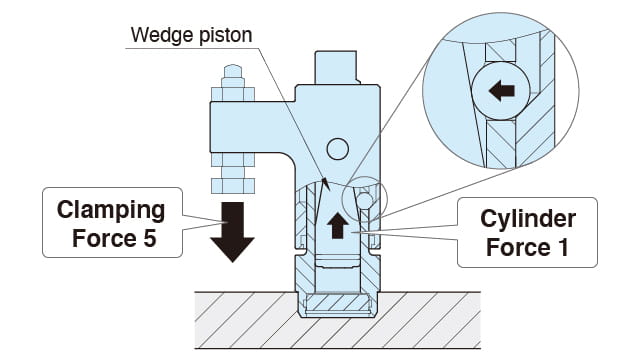

Wedge clamping mechanism provides up to 5 times stronger clamping force than a pneumatic cylinder of the same size.
Quick and Constant Pneumatic Clamping
Reduce workpiece setup time and provide stable clamping
Compact Design
Small body allows multiple clamping at a time in limited space.
5 Types Are Available
Swing, Hold-down, Pull-down and OD/ID-holding types are ideal for your automated application.
Lineup
AMWSW-W
COMPACT PNEUMATIC SWING CLAMPS
AMWSW-W-D
COMPACT PNEUMATIC SWING CLAMPS WITH ROD
- Detecting clamping / unclamping condition with switches
AMWSW-W-AG
COMPACT PNEUMATIC SWING CLAMPS WITH DETECTING PORTS (Gasket Piping)
- Detecting clamping / unclamping condition with pressure sensors
AMWSW-W-AC
COMPACT PNEUMATIC SWING CLAMPS WITH DETECTING PORTS (Thread Piping)
- Detecting clamping / unclamping condition with pressure sensors
PNEUMATIC HOLDING DOWN CLAMPS
- Low profile
- Magnetic sensor mountable for detecting the piston positions
PNEUMATIC PULL CLAMPS
- Ideal for 5-side machining
PNEUMATIC OD HOLDING CLAMPS
- Machinable collet for small, thin and complex workpieces
PNEUMATIC FORM HOLDING CLAMPS
- OD/ID clamping with machinable & interchangeable jaw
