Quick and Secure Locking for Slide and Angle Adjustment

Reliable operation without over/under tightening

One Touch Push Lock Clamps are quick locks that provide easy, tool-less locking with a simple turn for slide and angle adjustment.
The internal spring keeps the clamping force constant to prevent over/under tightening. The indication line and touch of a click allow any user a secure and reliable operation.
These locks are versatile enough to clamp various objects such as flat bars, round shafts and linear rails in many sizes.
IMAO's One Touch Push Lock Clamps reduce setup time and increase productivity.

Product Video

Feature

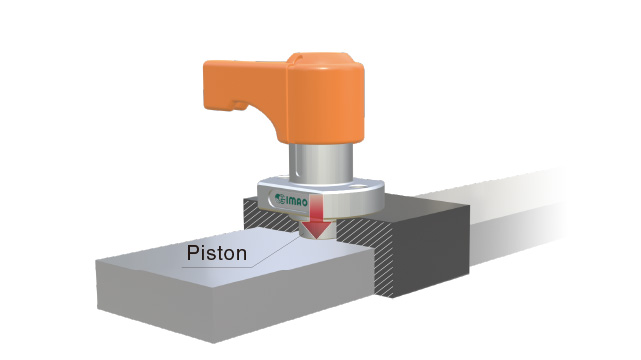

Quick & Easy Clamping by Pushing Out the Piston

Just turning the handle completes the clamping and unclamping process and speeds up slide and angle adjustment.

Secure Clamping

Allows any user error-free clamping with

  • Constant clamping force
  • Indication line
  • Touch of a click

NEW Also Available in Heavy-duty Version

Heavy-duty type features higher clamping force of 1100 N, which can lock the object with a simple turn of the handle. A wedge mechanism is added for constant, stronger clamping force.

Ideal for applications requiring extra holding force and torque.

Suitable for Various Objects & Sizes

Applicable to flat bars, round shafts, and linear rails in many sizes.

Additional Feature

Available in 2 Tip Styles

Flat tip hardly damages an object

Diamond tip provides high holding force

Application Example

One Touch Push Lock Clamps Adopted for Printer Position Adjustment on Tabletop Conveyors for Quick and Easy Adjustment

One Touch Push Lock Clamps have been successfully implemented for inkjet printer position adjustment on tabletop paper conveyors, resulting in significantly faster and easier adjustment processes. This example highlights the successful application by a manufacturer of industrial printers.

OTHER APPLICATIONS

Installation and removal of paper cores

Position adjustment of guide rollers

Position adjustment of print heads

Fixing of rotary table

Position adjustment of robot

Lock for elevating equipment

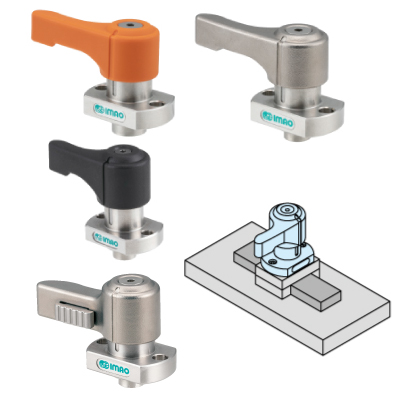

Lineup

QCPS

ONE TOUCH PUSH LOCK CLAMPS

QCPSS

HEAVY DUTY ONE TOUCH PUSH LOCK CLAMPS

QCPSC

SHAFT COLLARS
